Use Case Diagram Example: Task Management Tool
Use Case Diagram Example: Task Management Tool
Effective project management tools are built on well-defined user roles. This example shows you how to model a task management system, clearly separating the daily functions of team members from the oversight and reporting capabilities of managers.

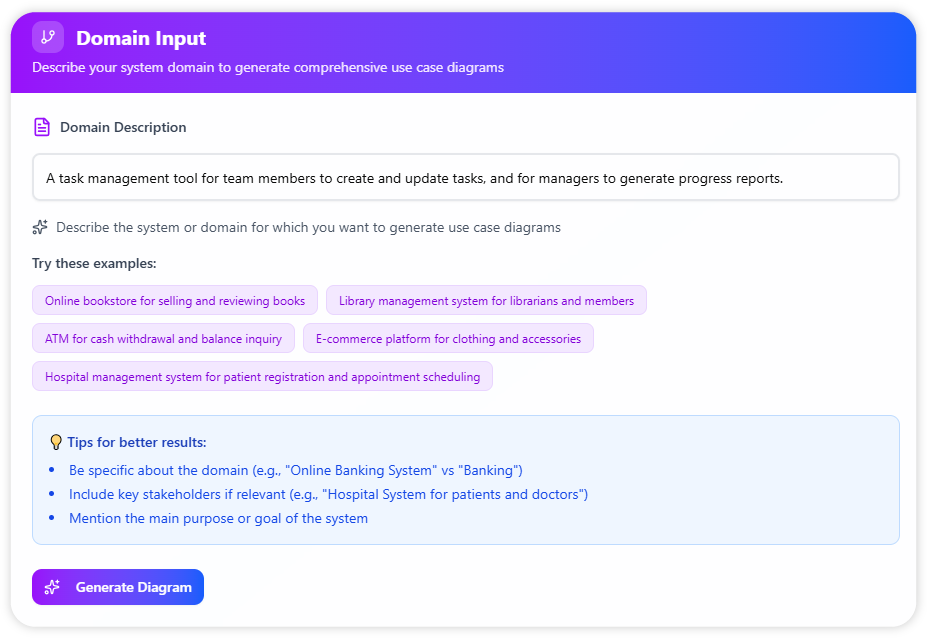

Describe the System Domain
The description establishes two actors: the Team Member, who performs tasks, and the Manager, who oversees progress.

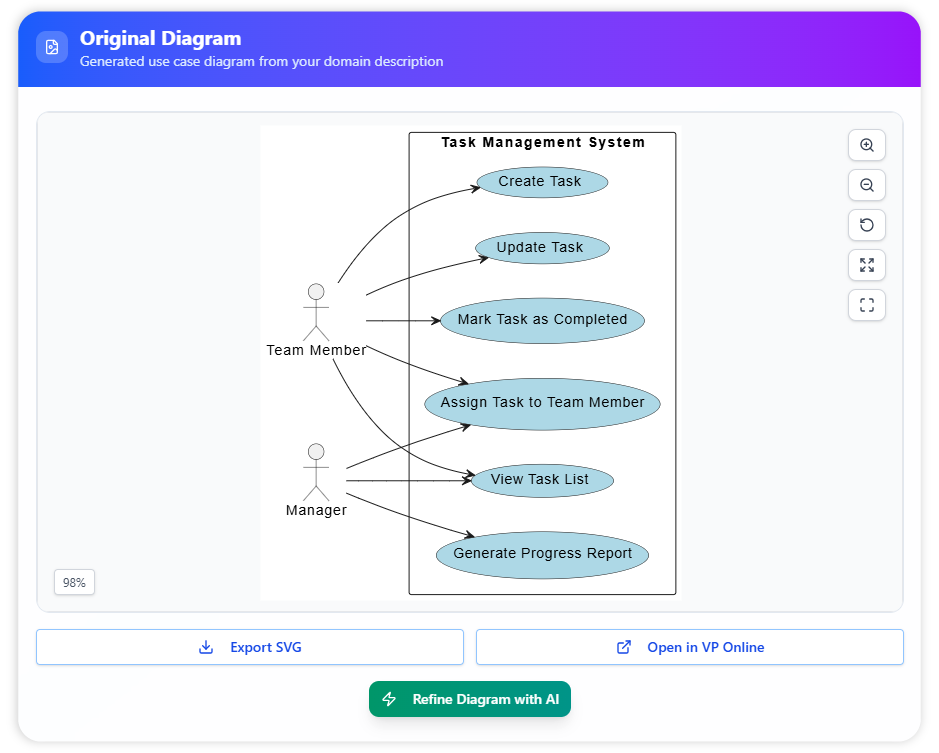

Generate the Initial Diagram
The tool generates a diagram that clearly separates the day-to-day task functions from the high-level reporting functions.
Refine Diagram with AI
The AI refinement adds the “Log In” use case, correctly identifying that both team members and managers must authenticate before they can perform their respective functions.
