Activity diagrams serve as a cornerstone in the visualization of business processes and system behaviors. For business analysts and requirements engineers, understanding how to construct these diagrams is not merely about drawing shapes; it is about communicating logic, flow, and constraints with absolute clarity. A well-constructed diagram bridges the gap between abstract requirements and concrete implementation. It provides stakeholders with a visual narrative that is easier to digest than text-heavy specifications.

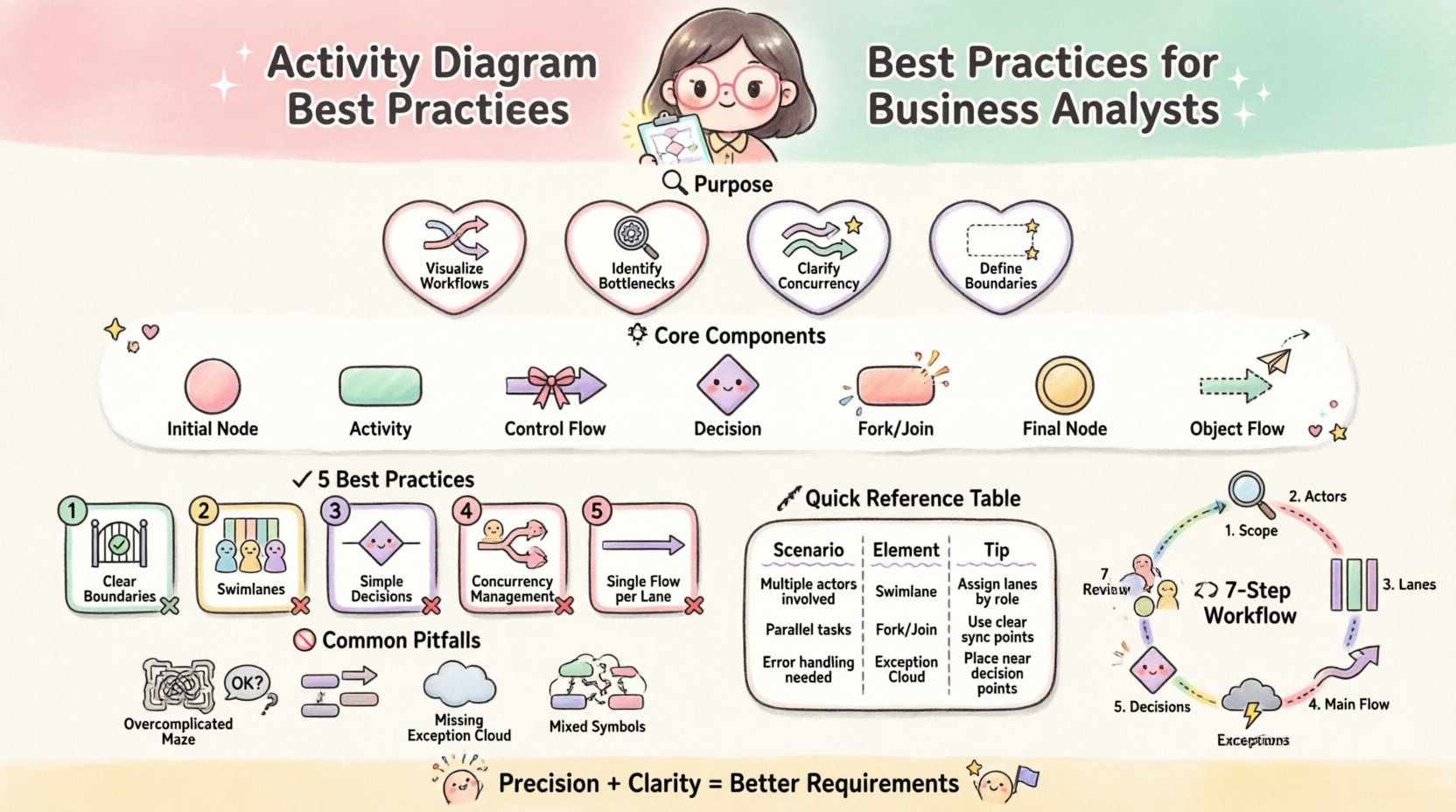

This guide outlines the essential methodologies for creating effective activity diagrams. We will explore the structural components, strategic design principles, and common pitfalls to avoid. By adhering to these standards, professionals can ensure that process models remain accurate, maintainable, and valuable throughout the project lifecycle.
Before diving into construction, it is vital to understand the specific role an activity diagram plays in the requirements engineering landscape. Unlike flowcharts which often focus on control logic, activity diagrams emphasize the flow of activities and the flow of objects. They are dynamic representations that show the sequence of actions within a system or business process.
For business analysts, the primary value lies in:
When requirements engineers utilize these diagrams, they reduce ambiguity. Text descriptions can be interpreted in multiple ways, but a structured diagram provides a single source of truth for logic flow.
A robust activity diagram relies on a standardized set of symbols. Using these correctly ensures that anyone reviewing the model understands the intent without needing a legend. The following elements form the foundation of effective modeling:
Consistency in symbol usage is paramount. Deviating from standard notation can lead to confusion among developers and testers who rely on these diagrams for coding and validation.
Creating a diagram that is both accurate and readable requires discipline. The following practices help maintain high standards across all documentation.
Every diagram must have a defined scope. Starting without a clear entry point or ending without a defined exit point creates confusion. Ensure the initial node represents the trigger event (e.g., “User submits form”) and the final node represents the outcome (e.g., “Record saved in database”).
Consider the following checklist for boundaries:
Swimlanes are horizontal or vertical partitions that assign activities to specific roles, departments, or system components. This is critical for business analysts to show who is responsible for what.
Using swimlanes prevents the “black box” effect where the logic exists but the owner is unknown. It clarifies handoff points, which are often where errors occur in real-world processes.
Decision nodes are powerful but can quickly clutter a diagram. A single decision point should ideally have no more than two or three outgoing paths. If a condition requires complex logic, consider using a sub-activity or a separate diagram.
Key strategies include:
Real-world processes often involve parallel actions. Fork and join nodes handle this, but they must be used correctly.
Misusing these nodes can imply synchronization where none exists, or vice versa. Always ensure that a join node waits for all paths that were forked. If one path is optional, the join logic must reflect that exception handling.
While swimlanes are useful, crossing lines between lanes should be minimized. Every arrow crossing a swimlane boundary represents a handoff. Too many handoffs indicate poor process design or a diagram that is too complex for a single view.
To aid in quick reference and validation, use tables to summarize constraints and rules. Below is a reference table for common modeling scenarios.
| Scenario | Recommended Element | Best Practice Note |
|---|---|---|
| Process starts | Initial Node | Must be the only start point unless modeling alternative triggers. |
| Conditional Logic | Decision Node | Label edges with guard conditions, not just “Yes” or “No”. |
| Parallel Tasks | Fork / Join Nodes | Ensure all forked paths converge at the join node. |
| Data Movement | Object Flow | Use dashed lines to distinguish from control flow. |
| Process Handoff | Swimlane Boundary | Minimize crossings to reduce cognitive load. |
| Process End | Final Node | Ensure no outgoing arrows exist from this node. |
An activity diagram is not an isolated artifact. It must be traceable to the requirements that drive it. This linkage ensures that the model reflects actual business needs rather than hypothetical scenarios.
Activity diagrams often elaborate on Use Cases. While a Use Case describes what the system does from a user perspective, the Activity Diagram describes how it happens internally. Ensure that every activity in the diagram corresponds to a functional requirement.
Testers rely on these diagrams to derive test cases. A clear diagram allows for the identification of:
If a diagram is ambiguous, the acceptance criteria will likely be vague. Precision in the diagram leads to precision in the testing phase.
Even experienced practitioners can fall into traps that degrade the quality of the model. Awareness of these common errors helps maintain high standards.
A diagram should not show every single keystroke or database query. It should focus on business-level activities. If a diagram becomes a page long, it is likely too detailed. Break the process down into sub-activities and create separate diagrams for the deeper levels.
Using labels like “OK” or “Error” on decision edges is insufficient. These terms are subjective. Instead, use data-driven conditions like “Status == Active” or “Credit Limit Exceeded”.
Ensure every node is reachable from the initial node. Dead ends that do not lead to a final node or a valid termination state indicate a logic error. Every path must have an outcome.
Happy paths are only part of the story. A robust activity diagram includes exception flows. What happens if a payment fails? What if a user cancels? These paths must be modeled explicitly to ensure the system handles failure gracefully.
Do not mix different notations within the same diagram. Stick to one standard (such as UML). Mixing symbols from different methodologies confuses the reader and reduces the professional quality of the documentation.
Creating a diagram is a solo effort, but validating it is a team sport. Business analysts should not finalize these models in isolation. The goal is shared understanding.
Feedback loops are essential. If developers find the diagram confusing during implementation, it indicates a need for revision, not just a misunderstanding on their part.
When approaching a new process for modeling, follow this structured workflow to ensure quality:
This systematic approach ensures that no critical component is overlooked. It moves the process from intuition to method.
How do you know if an activity diagram is good? Use the following metrics to assess quality:
Regular audits of these metrics help maintain the integrity of the requirements documentation over time.
The quality of software and business processes often hinges on the clarity of the initial specifications. Activity diagrams are a primary tool for achieving this clarity. They transform complex logic into a visual format that facilitates discussion, validation, and implementation.
By focusing on clear boundaries, proper use of swimlanes, explicit decision logic, and robust exception handling, business analysts and requirements engineers can create models that stand the test of time. These diagrams serve as a communication bridge, ensuring that the final product aligns with the intended business value.
Remember that the goal is not just to produce a document, but to facilitate understanding. When stakeholders can see the flow of work clearly, they can contribute better insights, identify risks earlier, and approve requirements with confidence. This level of precision reduces rework and accelerates delivery.
Maintain discipline in your modeling practices. Avoid shortcuts that compromise clarity. Invest time in refining the diagrams before presenting them. The effort spent in creating high-quality activity diagrams yields significant returns in reduced ambiguity and improved project outcomes.
